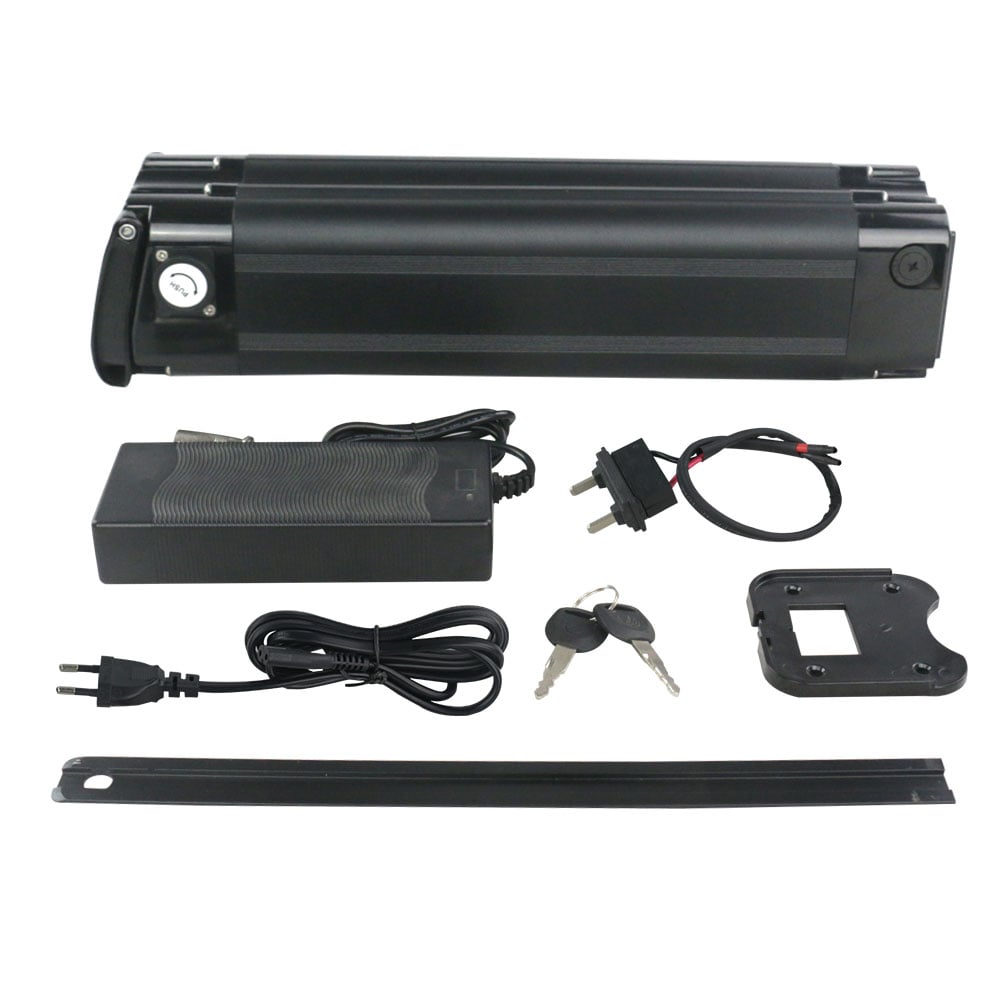

  • 24V/36V Lithium-ion Grade A custom Ebike battery - R005 Black

    Support Customization And Wholesale

    Warning

    Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of personal injury, property damage, or death

    BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED

    ONLY use with proper protection circuitry

    ONLY use within manufacturer specification

    DO NOT store loose in pocket, purse, etc. – always use a protective case

    KEEP AWAY from metal objects to prevent short circuiting

    DO NOT short circuit

    DO NOT use if wrapper or insulator is damaged or torn

    DO NOT use if damaged in any way

    DO NOT overcharge or over-discharge

    DO NOT modify, disassemble, puncture, cut, crush, or incinerate

    DO NOT expose to liquids or high temperatures

    DO NOT solder

    User must be familiar with handling lithium ion batteries before purchase

    Usage of batteries is AT YOUR OWN RISK

    Model Name: S005 (Black color)
    Number of Cells:50 cells

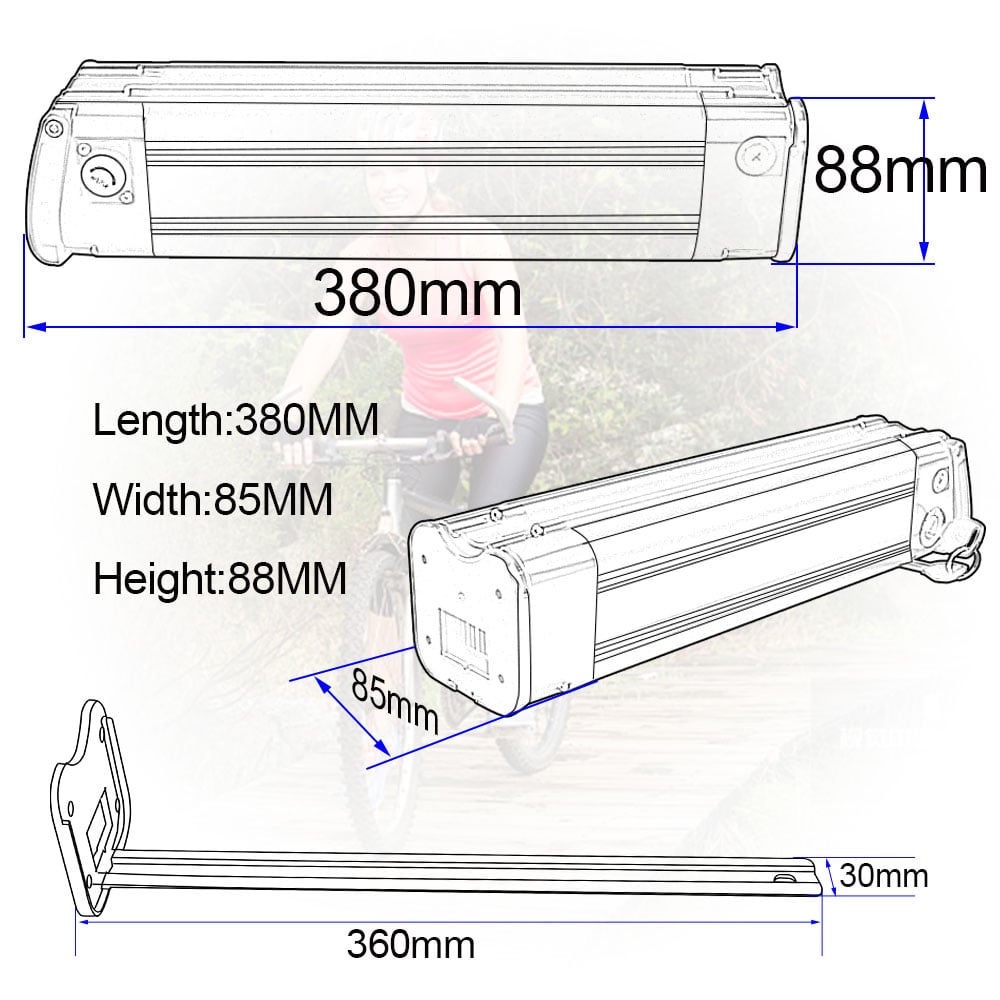

    Dimensions:380*85*88cm
    Weight:0.8kg
    Max. Discharge Current:30A
    Max. Charge Current:5A
    Suitable for:24V/36V
    Function:
    LED power display, charging port, discharge port, safety lock, switch taillight


    Specification information:
    24V12.5AH【Demestic 2500 cells】         Configuration: 7S5P
    24V16AH【LG3200 cells】                        Configuration: 7S6P
    24V25AH【Demestic 2500 cells】            Configuration: 7S10P
    24V32AH【LG3200 cells】                        Configuration: 7S10P
    36V10AH【Demestic 2500 cells】            Configuration: 10S4P
    36V22.4AH【LG3200 cells】                     Configuration: 10S7P
