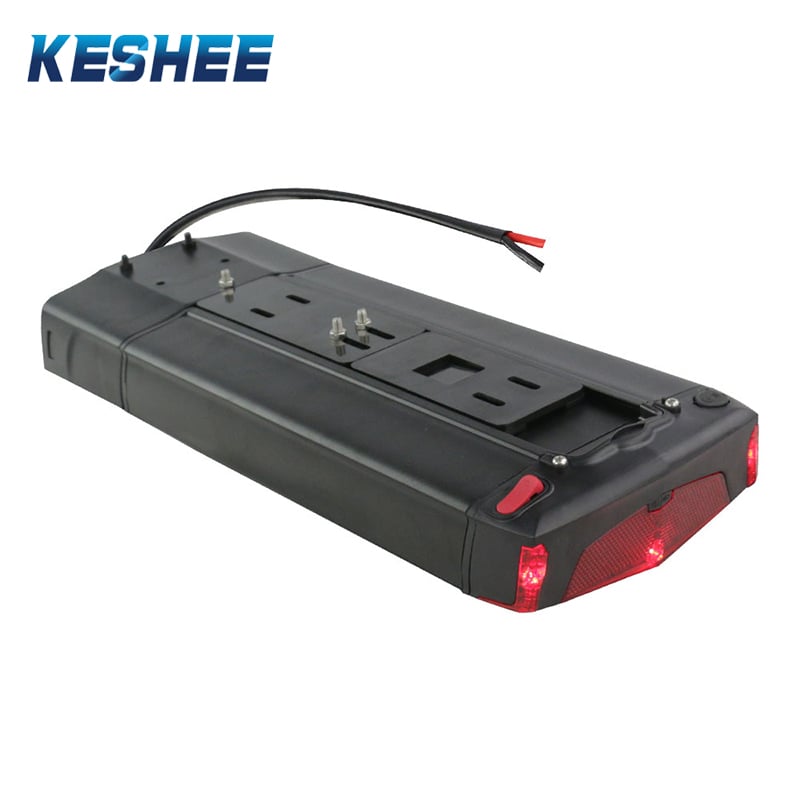

  • Dolphin 36V/48V Lithium-Ion Ebike Battery - R006

    Support Customization And Wholesale

    Warning

    Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of personal injury, property damage, or death

    BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED

    ONLY use with proper protection circuitry

    ONLY use within manufacturer specification

    DO NOT store loose in pocket, purse, etc. – always use a protective case

    KEEP AWAY from metal objects to prevent short circuiting

    DO NOT short circuit

    DO NOT use if wrapper or insulator is damaged or torn

    DO NOT use if damaged in any way

    DO NOT overcharge or over-discharge

    DO NOT modify, disassemble, puncture, cut, crush, or incinerate

    DO NOT expose to liquids or high temperatures

    DO NOT solder

    User must be familiar with handling lithium ion batteries before purchase

    Usage of batteries is AT YOUR OWN RISK

    Parameters
    Model: R006(BRILLIANCE 3)

    Cells: 52pcs(18650)

    Dimenison: 440*155*63mm

    Case weight:1.2kg

    Max Discharge current: 30A

    Max Charge current: 3A

    Voltage36V/48V Function: LED Battery

    Indicator, DC charge port,6Pin discharge port, safety lock, switch, taillight

    Specifications
    36V10Ah(Chinese Ce2500); Combination: 10S4P

    36V10.4Ah(LG2600); Combination: 10S4P

    36V13Ah(LG2600); Combination: 10S5P

    36V16Ah(LG3200); Combination: 10S5P

    36V17.5Ah(Samsung); Combination: 10S5P

    48V10Ah(Chinese Cell Grade A); Combination: 13S4P

    48V11.6Ah(LG2900); Combination: 13S4P

    48V14Ah(Samsumg3500); Combination: 13S4P
