Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of personal injury, property damage, or death
BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
ONLY use with proper protection circuitry
ONLY use within manufacturer specification
DO NOT store loose in pocket, purse, etc. – always use a protective case
KEEP AWAY from metal objects to prevent short circuiting
DO NOT short circuit
DO NOT use if wrapper or insulator is damaged or torn
DO NOT use if damaged in any way
DO NOT overcharge or over-discharge
DO NOT modify, disassemble, puncture, cut, crush, or incinerate
DO NOT expose to liquids or high temperatures
DO NOT solder
User must be familiar with handling lithium ion batteries before purchase
Usage of batteries is AT YOUR OWN RISK
Model Name:

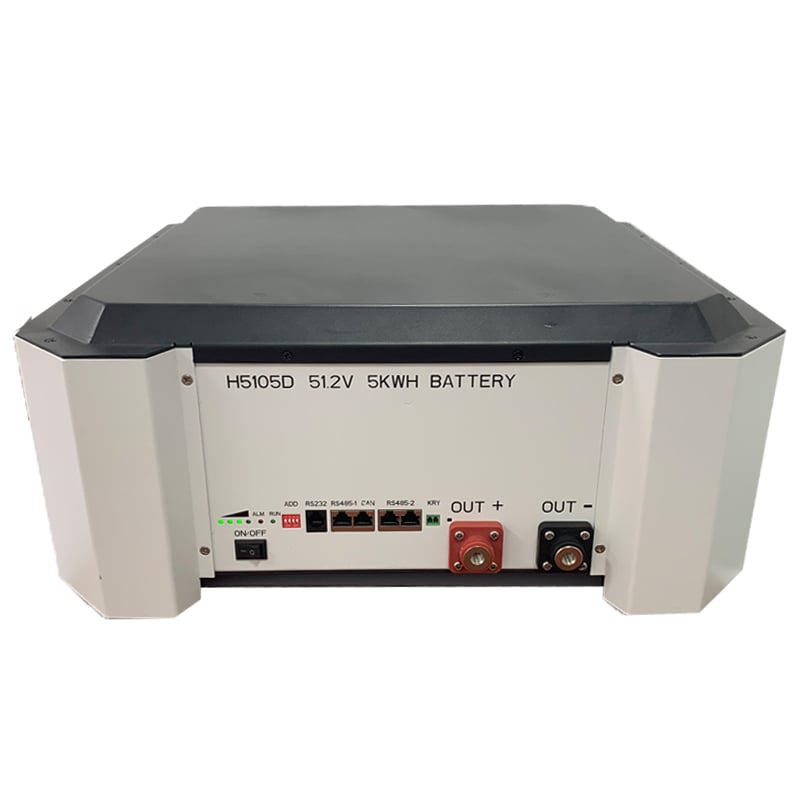

KESHEE 16S1P 48V/51.2V 100Ah 5KWH Battery Pack
Basic Parameter:
Rated Nominal Capacity: 5KWH (100AH)*N Tiers
Maximum Discharge: 100A*N Tiers (-20°C~60°C ; 65±20%RH)
Working Temperature Range: –20~60℃
Storage Environment: -20°C ~ 45°C
Humidity: 65±20%RH
Suitable for Battery:
15S1P 3.2V EVE 100Ah/3.2V 105Ah CALT 100Ah LiFePO4 cells
26S1P 3.2V EVE 100Ah/3.2V 105Ah CALT 100Ah LiFePO4 cells
BMS information:
KESHEE 16S100A BMS, more details please check product specification
Functions:
Support CAN/RS485/RS232 communication protocols
Compatible with over 15 inverter brands in the market
Build-in KESHEE 100A BMS, with communication function, temperature sensor function
Support maximum 4 units in parallel, support maximum 20kwh battery packs
Dimension:
Package Dimension: 570*570*280mm
Product Dimension: 488*488*198mm
Separate kits and complete battery orders are allowed, come to us for Custom logo design.
