Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of personal injury, property damage, or death
BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
ONLY use with proper protection circuitry
ONLY use within manufacturer specification
DO NOT store loose in pocket, purse, etc. – always use a protective case
KEEP AWAY from metal objects to prevent short circuiting
DO NOT short circuit
DO NOT use if wrapper or insulator is damaged or torn
DO NOT use if damaged in any way
DO NOT overcharge or over-discharge
DO NOT modify, disassemble, puncture, cut, crush, or incinerate
DO NOT expose to liquids or high temperatures
DO NOT solder
User must be familiar with handling lithium ion batteries before purchase
Usage of batteries is AT YOUR OWN RISK

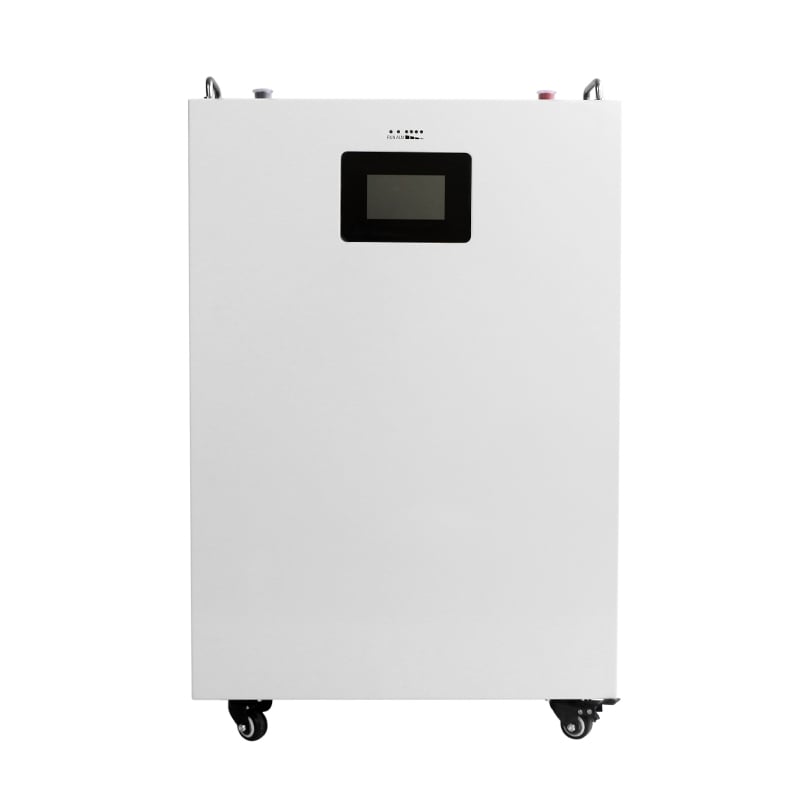

Technical Specifications-Battery wall Series
Model: TGPRO-7KWh
Nominal Voltage: 51.2V(16series)
Capacity: 150Ah
Energy: 7680Wh
Weight: Approx: 79kg
Internal Resistance: ≤30mΩ
Cycle Life: ≥5000 cycles @ 80% DOD, 25��, 0.5C ; ≥4000 cycles @ 80% DOD, 40��, 0.5C
Design Life: ≥10 years
Charge Cut-off Voltage: 56.0V±0.5V
Max. Continuous Work Current: 100A/150A(Can choose)
Discharge Cut-off Voltage: 45V±0.2V

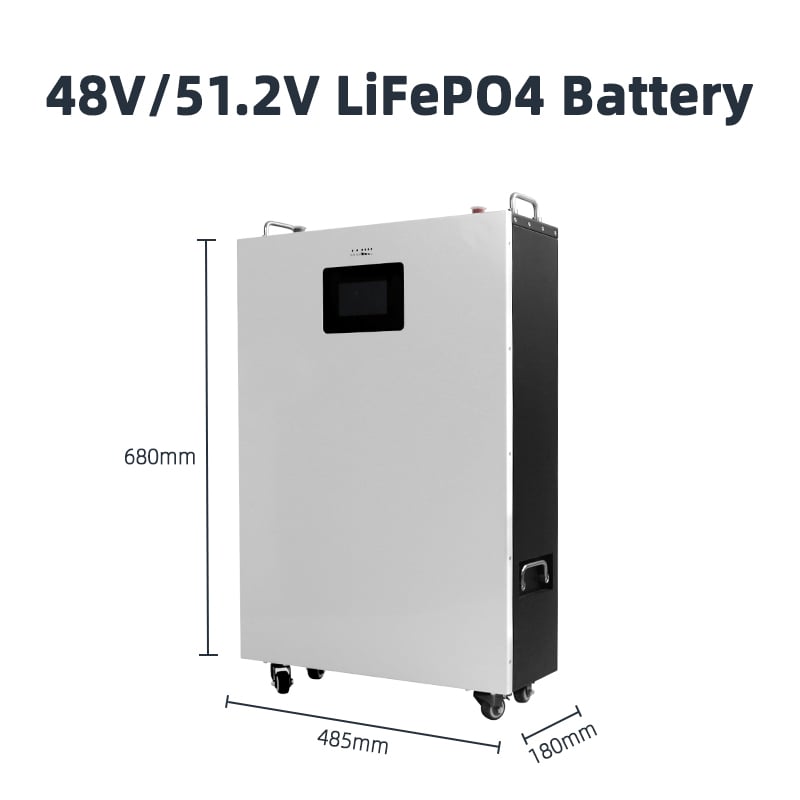

Dimensions: 680 x485 x180(220)mm
Protocol (optional): RS232-PC, RS485(B)-PC RS485(A)-Inverter, Canbus-Inverter
Certification: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
