Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of personal injury, property damage, or death
BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
ONLY use with proper protection circuitry
ONLY use within manufacturer specification
DO NOT store loose in pocket, purse, etc. – always use a protective case
KEEP AWAY from metal objects to prevent short circuiting
DO NOT short circuit
DO NOT use if wrapper or insulator is damaged or torn
DO NOT use if damaged in any way
DO NOT overcharge or over-discharge
DO NOT modify, disassemble, puncture, cut, crush, or incinerate
DO NOT expose to liquids or high temperatures
DO NOT solder
User must be familiar with handling lithium ion batteries before purchase
Usage of batteries is AT YOUR OWN RISK
Model Name: KESHEE Smart BMS 16S 200A
Workable System: 48V/51.2V 280Ah/302Ah/304Ah LiFePO4 battery packs
Communication Protocols: RS232 /485 /CAN
BMS Dimension:280*100mm
Apply to: Lifepo4/LTO/lithium-ion batteries
Customize: Yes
Balance function: passive balance

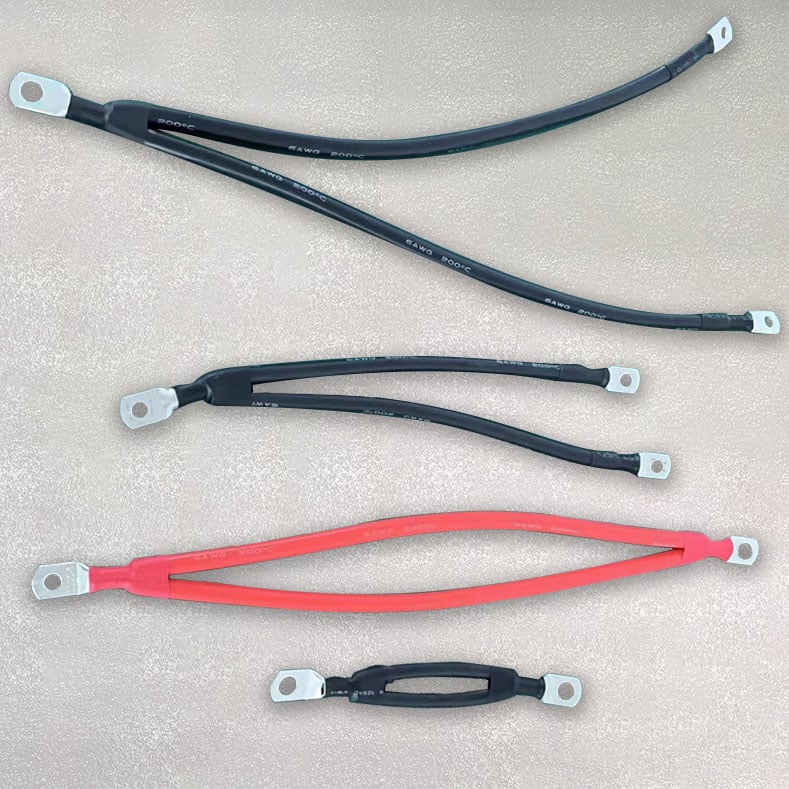

Package include:
1. KESHEE Smart BMS 16S 200A
2. B - terminal line:
The M8 terminal divides into two M6 *2 terminal lines, black #3239AWG6 line , length of 330 & 310mm respectively
3. B + terminal line:
M8 terminal double line connected to M6 terminal line, 2 red #3239AWG6 lines, length of 300mm
4. P-terminal line:
The M6 terminal divides into two M6 * 2 terminal lines, black #3239AWG6 line , the length of 220 & 200mm respectively
5. C terminal line:
M8 terminal double line connected to M8 terminal line, 2 black #3239AWG6 lines, length of 80mm
