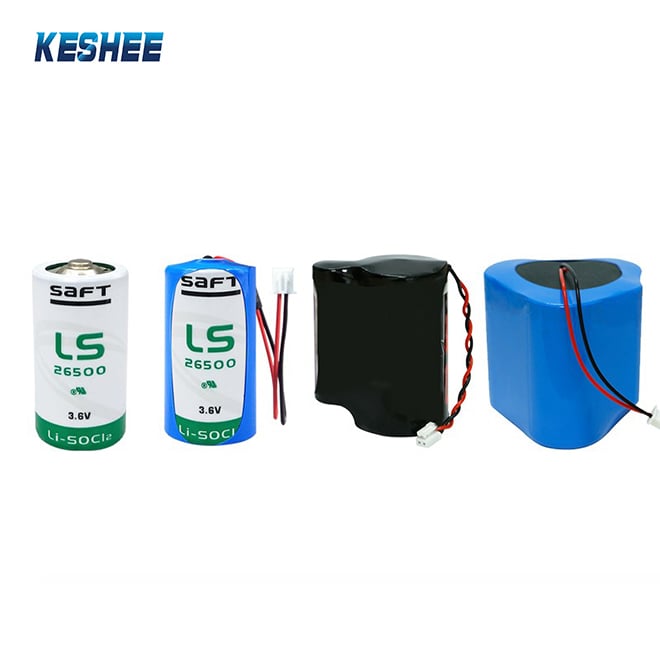

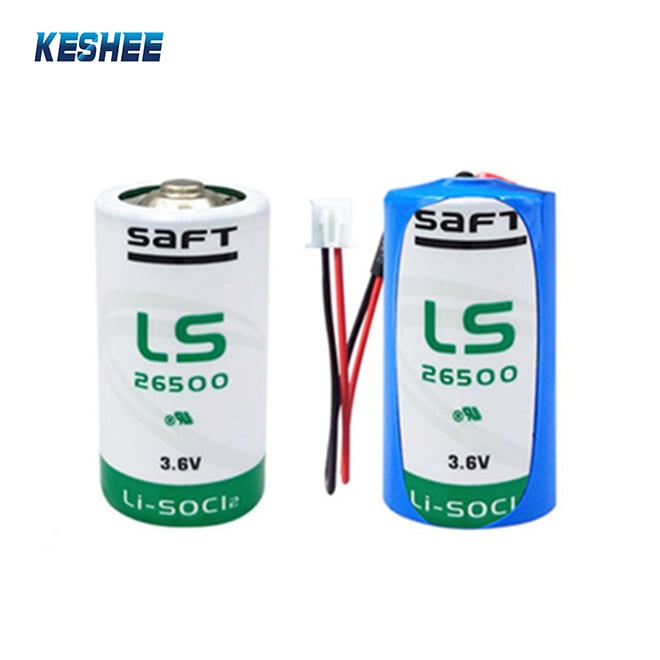

  • SAFT 3.6V 7.7Ah Primary Lithium Battery - LS26500 Wire

    Support Customization And Wholesale

    Warning

    Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of personal injury, property damage, or death

    BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED

    ONLY use with proper protection circuitry

    ONLY use within manufacturer specification

    DO NOT store loose in pocket, purse, etc. – always use a protective case

    KEEP AWAY from metal objects to prevent short circuiting

    DO NOT short circuit

    DO NOT use if wrapper or insulator is damaged or torn

    DO NOT use if damaged in any way

    DO NOT overcharge or over-discharge

    DO NOT modify, disassemble, puncture, cut, crush, or incinerate

    DO NOT expose to liquids or high temperatures

    DO NOT solder

    User must be familiar with handling lithium ion batteries before purchase

    Usage of batteries is AT YOUR OWN RISK

    Model:SAFT LS26500 Wire

    • Size: C-size bobbin cell
    • Nominal Voltage:3.6Volts (under 0.5mA, +20℃)
    • Nominal capacity:7.7Ah
    • Nominal Energy: 27.72Wh
    • Max. Recommended continuous current:150mA
    • Pulse Capability: Typically up to 300mA
    • Operating Temperature Range: -60℃/ +85℃
    • Storage temperature(recommended): +30℃ max.

    Demension:

    • Max diameter:26.0mm (1.02 in)
    • Max Height:49.1mm or 50.4mm (1.93 in or 1.98 in)
    • Typical weight:48g (1.7 oz)
    • Li Metal Content: Approx. 2.0g

    Applications:

    • Utility metering
    • Automatic meter readers
    • Buoys
    • Measuring equipment
    • Industrial applications
    • Professional electronics
