Support Customization And Wholesale
Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of personal injury, property damage, or death
BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
ONLY use with proper protection circuitry
ONLY use within manufacturer specification
DO NOT store loose in pocket, purse, etc. – always use a protective case
KEEP AWAY from metal objects to prevent short circuiting
DO NOT short circuit
DO NOT use if wrapper or insulator is damaged or torn
DO NOT use if damaged in any way
DO NOT overcharge or over-discharge
DO NOT modify, disassemble, puncture, cut, crush, or incinerate
DO NOT expose to liquids or high temperatures
DO NOT solder
User must be familiar with handling lithium ion batteries before purchase
Usage of batteries is AT YOUR OWN RISK

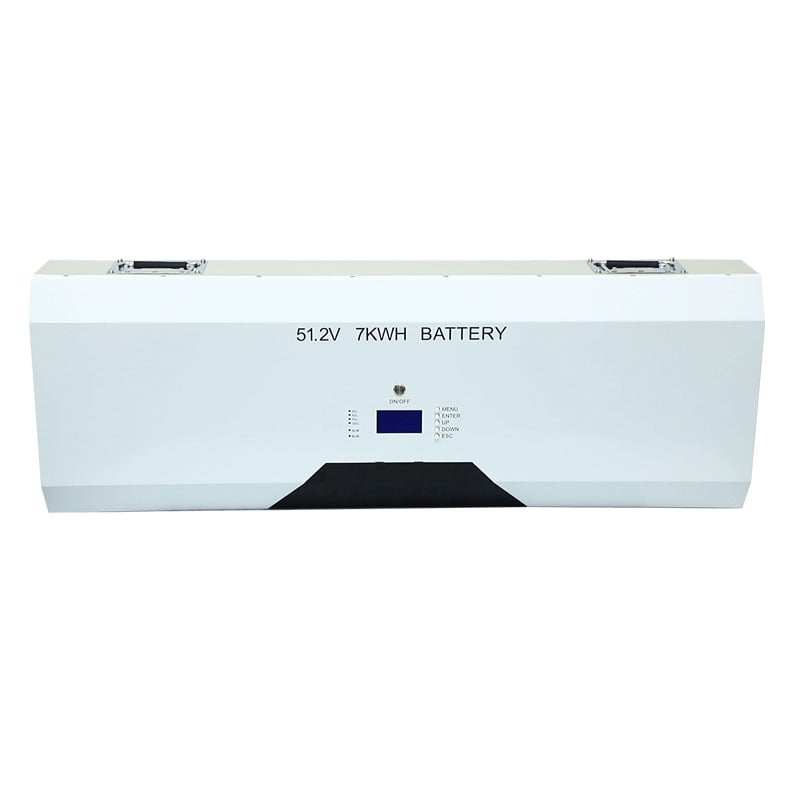

Model Name: H5107
Nominal Voltage: 51.2V
Rated Nominal capacity: 7KWH (136AH)
Internal Impedance: ≤16mΩ
Voltage (Packing) 51.2-54.4V
Limited Charging Voltage: 58.4V
Recommended charging current: 0.2C: 27.2A
Recommended discharge current: 0.5C: 68A
Maximum discharge current: 100A (-20°C~60°C ; 65±20%RH)
End-off voltage: 40.0V Standard battery cut-off voltage
Life Cycle: 0.2C discharge and charge, 5000 times ≥80% initial capacity
Type of cooling: Self cooling
Communication Protocols: RS485 RS232 CAN
Battery warranty: 3-5 Years
Working Temperature Range: –20~60℃
Weight: around 60.0KG
Package 30mm honeycomb cardboard box: 1000*348*130mm
Dimension: 1000*348*130mm
